Description

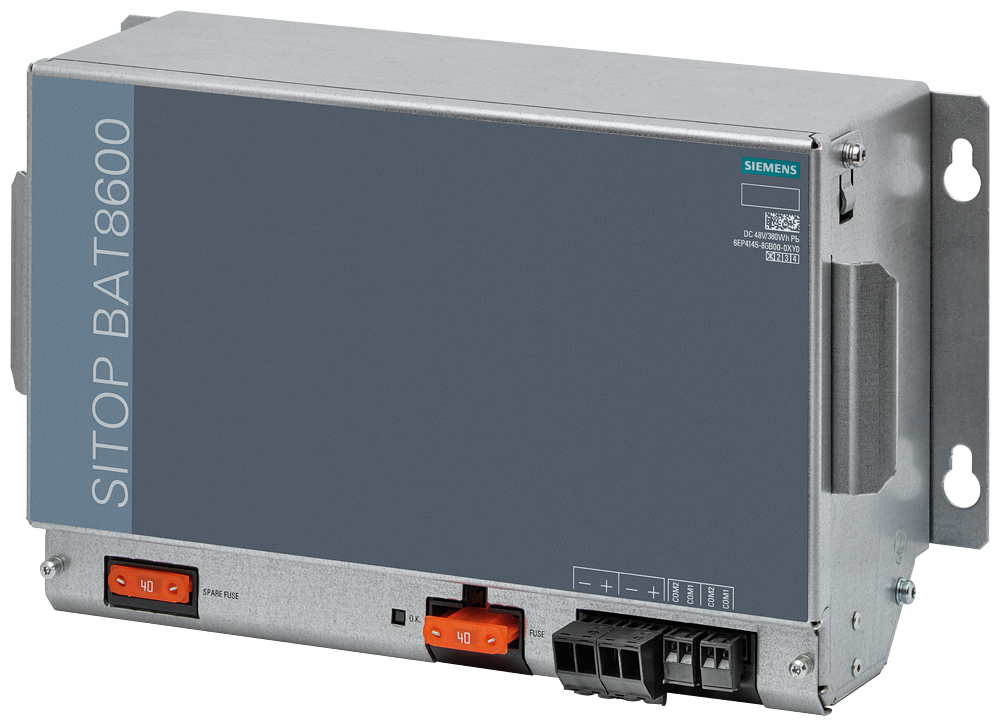

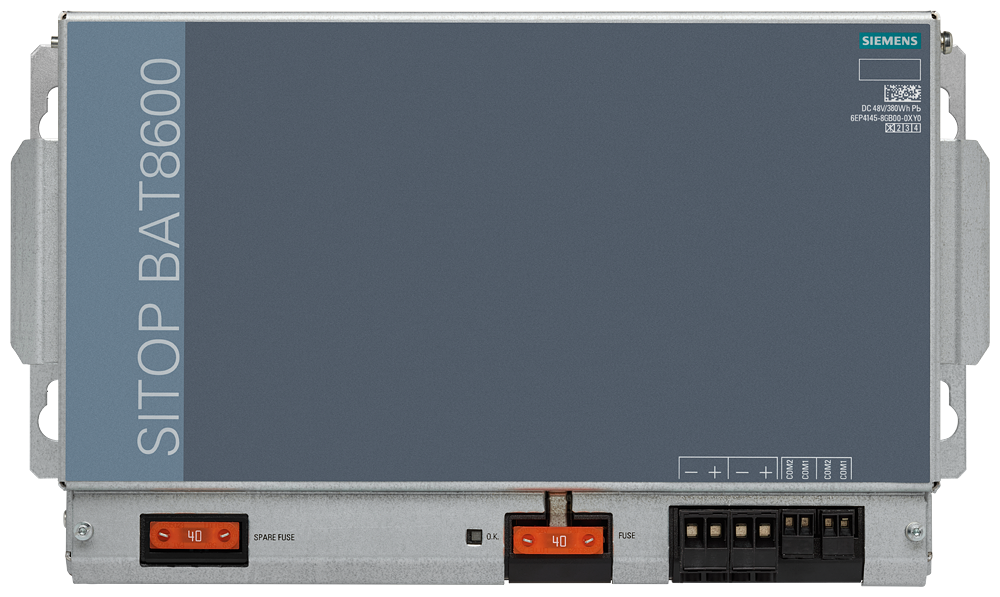

SITOP BAT8600 Pb battery module for UPS8600 DC 48 V/380 Wh energy storage: mainten.-free lead batteries To protect against prolonged power failures, the SITOP PSU8600 power supply system can be extended with the UPS8600 UPS module and corresponding Bat8600 battery modules. This allows the DC outputs to be buffered in the minute to hour range without voltage dip. During buffering, it is possible to shut down the system in a targeted and safe manner or, if necessary, to allow the system to continue running without interference. The Bat8600 PB battery module has an energy storage of 380 Wh and buffers 10 min at960 watts. The buffer time can be extended accordingly by connecting up to 5 identical BAT8600 in parallel. The intelligent battery management ensures a temperature-controlled charging characteristic and monitors the operational readiness and charge status.
