Description

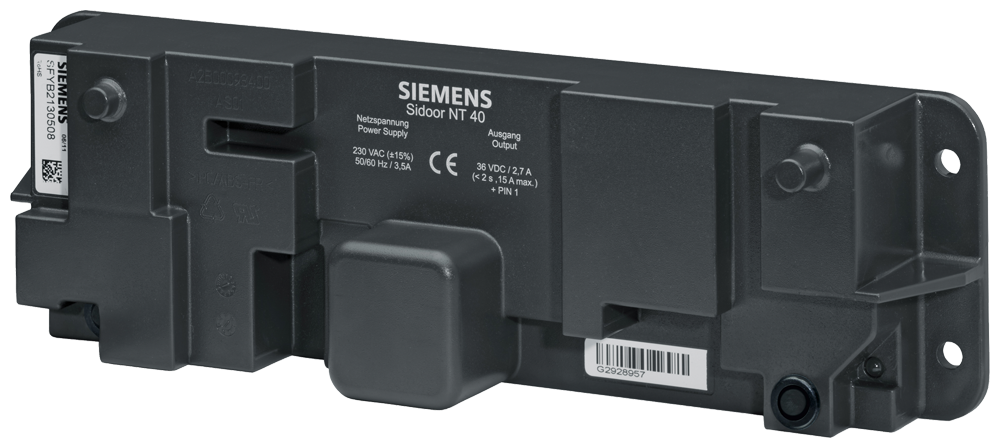

SIDOOR NT40 Switched-mode power supply, Input voltage: 230V AC (+-15%), 50/60 Hz, Output voltage: 36VDC, IP54, incl. line cable with Safety plug (CEE 7/4) of the Length 2 m, incl. connecting cable to Control device of length 1.5 m, -20 to +55 °C The SIDOOR NT40 switched mode power supply is operated with 230 V AC (± 15 %), 50/60 Hz, to power a SIDOOR door controller. It is characterized by its particular suitability for door systems with high dynamic masses of up to 700 kg at maximum performance. While the power supply unit supplies a voltage of 36 V DC (±3 %) SELV at the output side at a rated output power lt; 100 W, the device can briefly (max. 2 s) deliver a current of 15 A (corresponds to a brief power output of 540 W) to allow a fast acceleration/braking process for the doors by the control device.
