Description

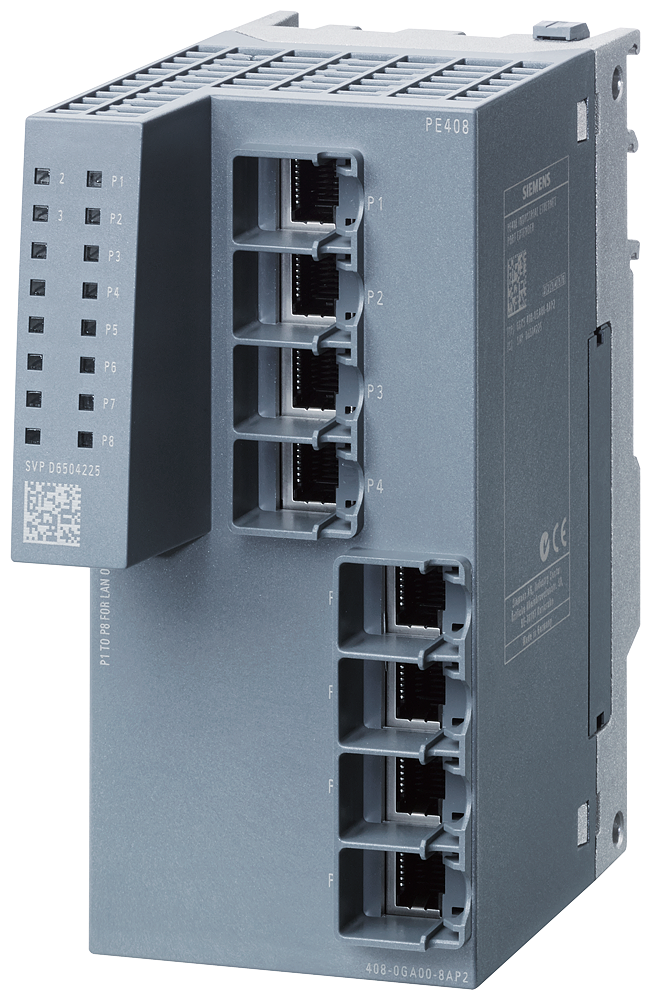

PE408 Port Extender for SCALANCE XM-400 managed modular IE switch; extension by 8x 10/100/1000 Mbit/s RJ45. PE408 Port Extender, 8x 10/100/1000 Mbps RJ45 for extending SCALANCE XM-400For flexible expansion of the modular switches.Substantial cost savings through modular system and port extension with SCALANCE XM-400: The modular system allows the setup of electrical and optical IE networks and the network topology and port type to be easily adapted to the plant structure and expanded at any time. Integrated industrial network for data, speech, and video. Mounting of a Port Extender at the basic device or a further Port Extender without tools. High performance through gigabit ports.Port Extender, expansion with 8x 10/100/1000 Mbps RJ45.The system is supplemented by FC FO plugs and case for self-assembly of FO cables (LC) for installation on site, MM FO BFOC and SC connector set, RJ45 connectors, terminal block for signaling contact, fixing screw and various FastConnect plug and cable versions (including preassembled) with stripping tool.DPMD_ACK236_001_000_1002400DPMD_ACK238_001_000_1002400
