Description

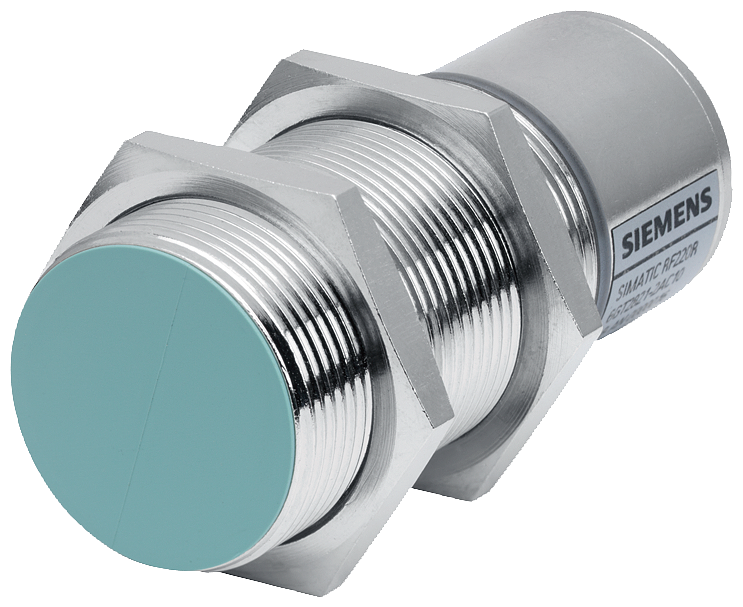

SIMATIC RF200 reader RF220R; RS422 interface (3964R); IP67, -25 to +70 °C; M30x 71mm; with integrated antenna. SIMATIC RFIdentification systemsRF220R readerCompact HF reader, especially suited for use in small assembly lines that require a greater range. Starter system for applications in the low to mid performance range. Typical application areas: Assembly and handling technology, assembly lines (identification of workpiece holders), in particular small assembly lines, production logistics (material handling control, identification of containers and other vessels), intralogistics, parts identification (transponderis attached to products or pallets), conveyor technology (e.g. suspended monorails).Compact reader in M30 housing with integrated antenna, for universal applications. Robust with top design for enhanced usability. RS422 interface with 3964R transmission procedure for connection to RFID communication modules. Simplified engineering, commissioning, diagnostics and maintenance through seamless integration into TIA. System-wide bus connection to the control level via PROFIBUS and PROFINET via communication modules. Diagnostics through integrated error message. Open ISO 15693 standard, standardized communication interfaces. Connection possibilities to various bus systems from different manufacturers via communication modules.
