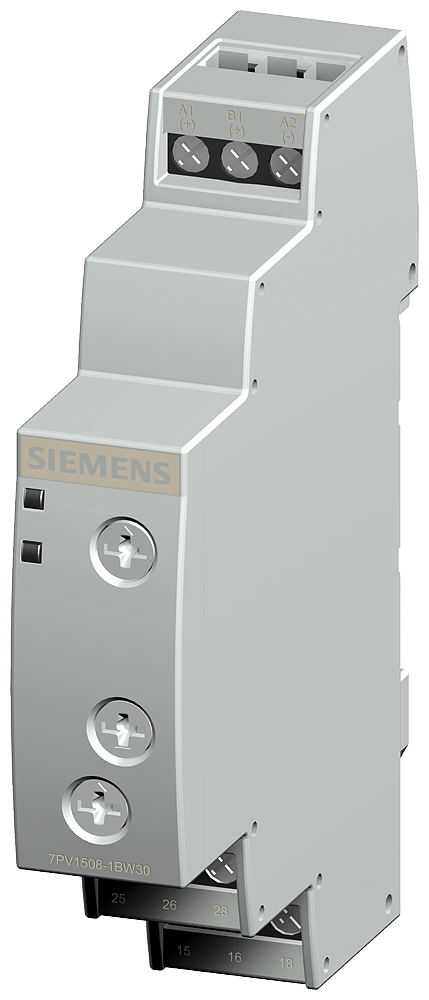

# 7PV1508-1BW30 Timing relay, electronic multifunction 2 change-over contacts, 7 functions, 7 time ranges

Timing relay, electronic multifunction 2 change-over contacts, 7 functions, 7 time ranges

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | SI_7PV1508-1BW30 |
| Code 2 | 7PV1508-1BW30 |
| Warranty | 12 |
| Warranty for companies | 12 |
| Brand | SIEMENS |

## Podrobný popis

Timing relay, electronic Multifunction 2 change-over contacts, 7 functions 7 time ranges 0.05 s ... 100 h 12-240 V AC/DC with LED, Screw terminal timing relay SIRIUS 7PV15, Multifunctional, for all switching operations involving time delays in control, starting, protection and regulation circuits. Can be used in the control cabinet or distribution board. Wide range of applications due to variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The 7PV time relays are available as single or multifunctional time relays. Alternatively, 3RP time relays are available in an industrial design as single or multifunctional time relays with semi-conductor output or as electromechanical relays with or without positively driven operation, with various connection technologies in each case. SIRIUS relays - one range for every application.
