Description

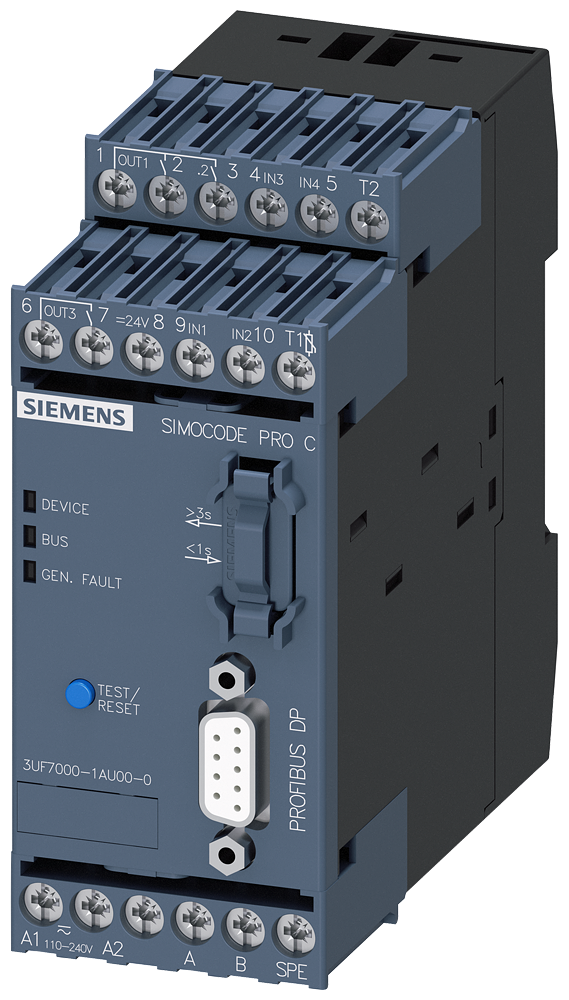

Basic device SIMOCODE pro C, PROFIBUS DP interface 12 Mbps, RS-485, 4 I/3 O freely configurable, Us: 110...240 V AC/DC, input for thermistor connection monostable relay outputs Motor management system SIMOCODE pro C for extensive protection, monitoring and control functions for asynchronous motors and detailed operating, service and diagnostics data for process control systems and control systems using the most common fieldbus systems. The compact motor management system with PROFIBUS DP interface for direct-on-line starters and reversing starters or for controlling a motor starter protector functions independently of the automation system. It supplies detailed operational, service and diagnostics data - at any time or place. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex) are available. Deployment with IE3/IE4 motors is supported. The SIMOCODE ES (TIA Portal) software is available for the configuration, commissioning, operation and diagnostics of SIMOCODE pro. The SIMOCODE pro block library for SIMATIC PCS 7 is used for the simple integration of SIMOCODE pro into the SIMATIC PCS 7 process control system. The SIMOCODE pro C basicunits are available with 24 V DC or 110-240 V AC/DC control supply voltage. Operation requires at least one current measuring module and a matching 3UF793 connecting cable. These, as well as an optional operator panel, are available separately. Take a step into the future with SIMOCODE.
