Description

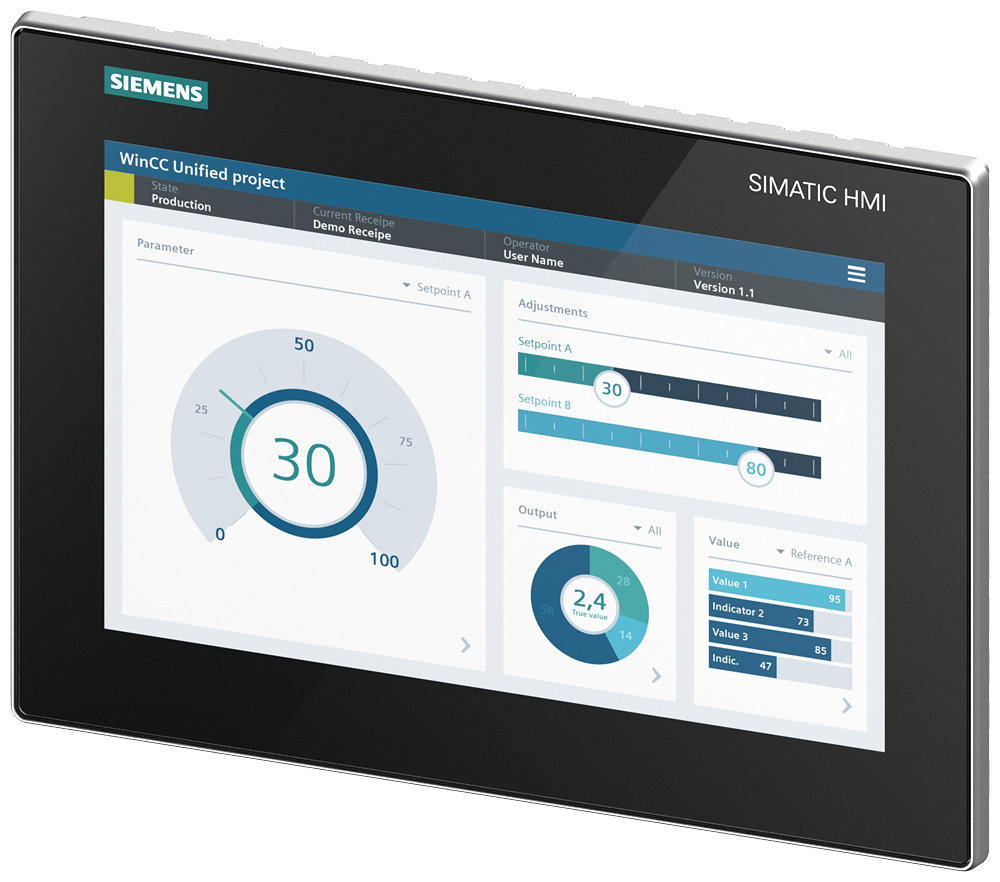

SIMATIC HMI MTP1200 – Unified Comfort Panel (12.1" Widescreen, Multi-Touch, PROFINET)
The SIMATIC HMI MTP1200 Unified Comfort Panel is a modern industrial operator panel designed for machine and line visualization and operation. It is based on the new SIMATIC WinCC Unified visualization platform, enabling innovative operating concepts, higher performance for demanding projects, and maximum user comfort directly on the panel.
Key benefits
- Multi-touch operation for intuitive handling (gestures, fast navigation, modern UI concepts).
- 12.1" widescreen TFT display with accurate color reproduction ( 16 million colors).
- PROFINET interface for integration into industrial networks and automation communication.
- Configurable as of WinCC Unified Comfort V16 – consistent engineering across Unified Comfort Panels.
- Significantly increased performance with the new hardware generation – system limits were at least doubled and in some cases even tripled, enabling larger panel applications than previously possible.
- Integrated Edge functionality to extend device capabilities as required.
- IT security: Siemens uses a proprietary operating system and allows users to disable functions or interfaces that are not required for improved hardening.
Technical description
SIMATIC HMI Unified Comfort Panels enable innovative HMI concepts based on SIMATIC WinCC Unified. The new hardware platform provides considerably more performance for visualization tasks, supporting more complex screens, higher object counts, and larger-scale applications on a panel system.
The device includes open-source software that is provided free of charge (see enclosed DVD/media).
Main specifications
- Series: SIMATIC HMI Unified Comfort Panels
- Model: MTP1200
- Operation: touch (multi-touch)
- Display: 12.1" widescreen TFT
- Colors: 16 million
- Communication: PROFINET interface
- Engineering: configurable as of WinCC Unified Comfort V16
- Software: contains open-source (provided free of charge, see enclosed DVD/media)
- Security: proprietary OS, option to disable unused functions/interfaces
Design variants
- Standard design: Siemens and SIMATIC HMI branding with a silver aluminum frame.
- Neutral design: without branding and with a black aluminum frame.
Typical applications
- Machine and production line operation and visualization
- HMI for standard and advanced applications with larger screens/object counts
- Projects requiring modern multi-touch and IT/OT security hardening
