Description

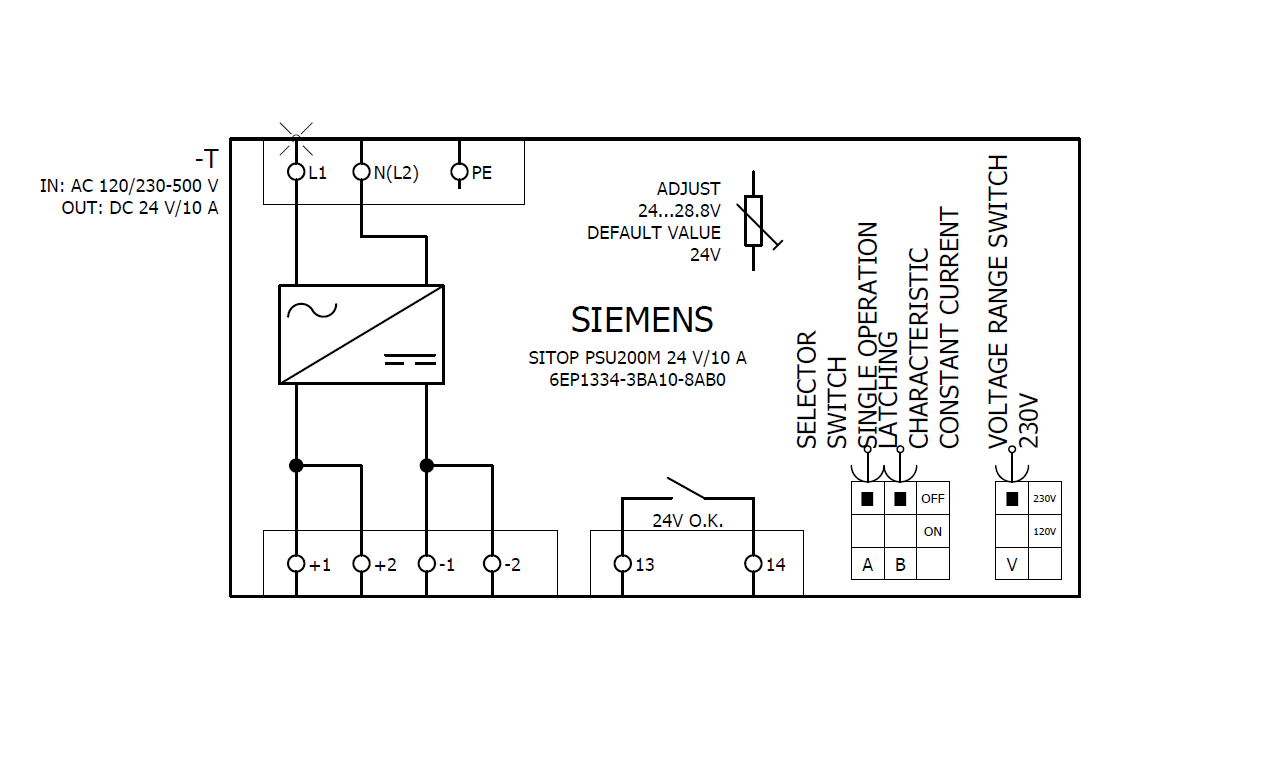

SITOP PSU200M plus 10 A Stabilized power supply input: AC 120-230/230-500 V output: DC 24 V/10 A Option for with protective varnish The 1 and 2-phase SITOP modular are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex plants and machines. The ultra-wide-range input allows connection to 1-phase supply networks or directly between the line conductors of three-phase networks (2-phase) and ensures a high level of safety even in the event of large voltage fluctuations. The Power Boost delivers up to three times the rated current for a short time. In case of overload, you can choose between constant current with automatic restart or latching shutdown. The high degree of efficiency keeps energy consumption and heat buildup in the control cabinet low, and the compact metal enclosure also saves space. The variant with the protective coating has improved resistance to extreme air loads such as condensation, dust and ESD load, etc. To further increase the 24 V availability, the power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industryor requirement: Siemens offers reliable and efficient power supplies for any plant.
