Description

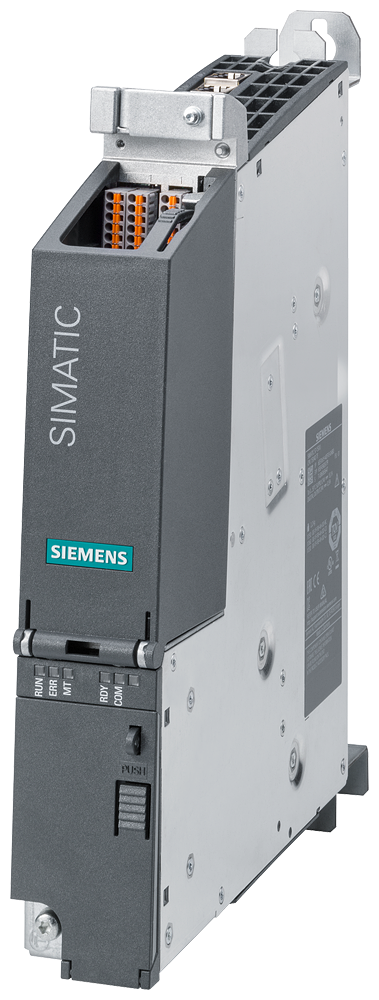

SIMATIC S7-1500, Drive Controller CPU 1507D TF with SINAMICS S120 Integrated; interfaces: 12 DI, 16 DI/DQ, 4 DRIVE-CLiQ, 3 PROFINET: 3+1+1 ports, 1 PROFIBUS, SIMATIC Memory Card required; supported firmware version: SIMATIC S7-1500 FW up to V3.1 (technology version up to V8.0), SINAMICS FW V5.2/V5.2 SP3 The SIMATIC Drive Controller integrates motion control functionality, technological functionality and PLC functionality directly into the SINAMICS S120 multi-axis drive system, without requiring additional space for the controller. Comprehensive interfaces and technology I/Os allow the efficient implementation of compact and modular automation solutions. Thanks to quick system response times, it is the ideal solution for systems in which large axis quantity structures and minimum cycle times for high machine clock rates, as well as optimum product quality through deterministic, reproducible machine behavior are demanded. The SIMATIC S7-1500 Drive Controller is currently available in two performance classes in the form of fail-safe technology CPUs and thus even covers the most demanding motion control solutions. The SIMATIC S7-1500 Drive Controller is configured using the software SIMATIC STEP 7 Professional and SINAMICS Startdrive. A SIMATIC memory card is required for the operation of this module. The SIMATIC Drive Controller is expanded by components of the modular SINAMICS S120 drive system and SIMATIC automation components such as HMI and I/O systems.
