Description

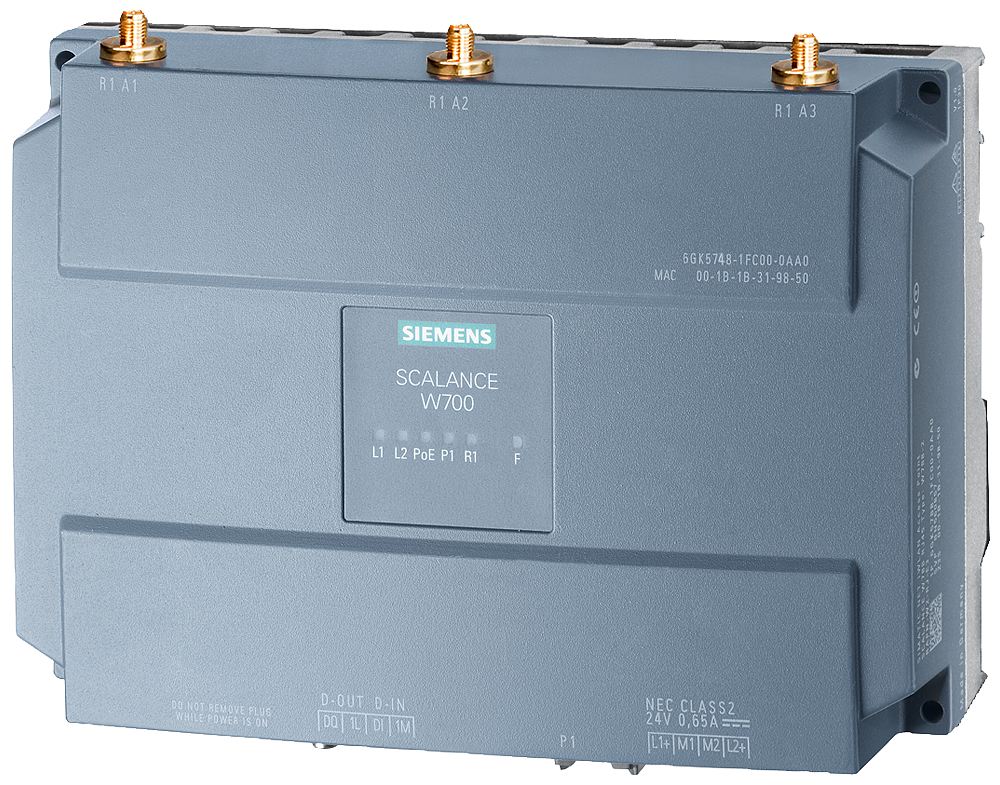

Product announced for discontinuation; IWLAN client, SCALANCE W748-1 RJ45, 1 radio, 3 R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross 450 Mbps per radio, 1x RJ45 max. 1 Gbps, PoE, redundant 24 V DC, joint block, IP30, temp: -20 ...+60 °C, WPA2/802.11i/e, signaling contact observe national approvals! cert ID: RAPN-W1-RJ-E3, includes: MPCIE-R1-ABGN-U3, scope of delivery: manuals on CD-ROM, German/English, 2x joint blocks; for operation outside of USA/Israel SCALANCE W748-1 RJ45 1x wireless, 3x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross 450 Mbps per wireless, 1x RJ45 max. 1 Gbps, PoE, redundant 24 V DC, terminal block, IP30, for operation outside the US/Israel. For managing wireless connection of up to eight connected devices with Industrial Ethernet connection. 1 unit.The devices are designed for installation in control cabinets, for applications requiring maximum bandwidth (e.g., video surveillance), and they are also suitable for real-time communication with free-moving applications.Rugged aluminum enclosure, shock and vibration-proof, for high mechanical requirements. IP30 degree of protection against dust and can be used at ambient temperatures from -20 °C to +60 °C. 3x3 MIMO technology for stable wireless connections, secure wireless communication via PROFINET with PROFIsafe up to 450 Mbps. Optional activation of additional functions (iFeatures) via removable data storage medium (plug).The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
