Description

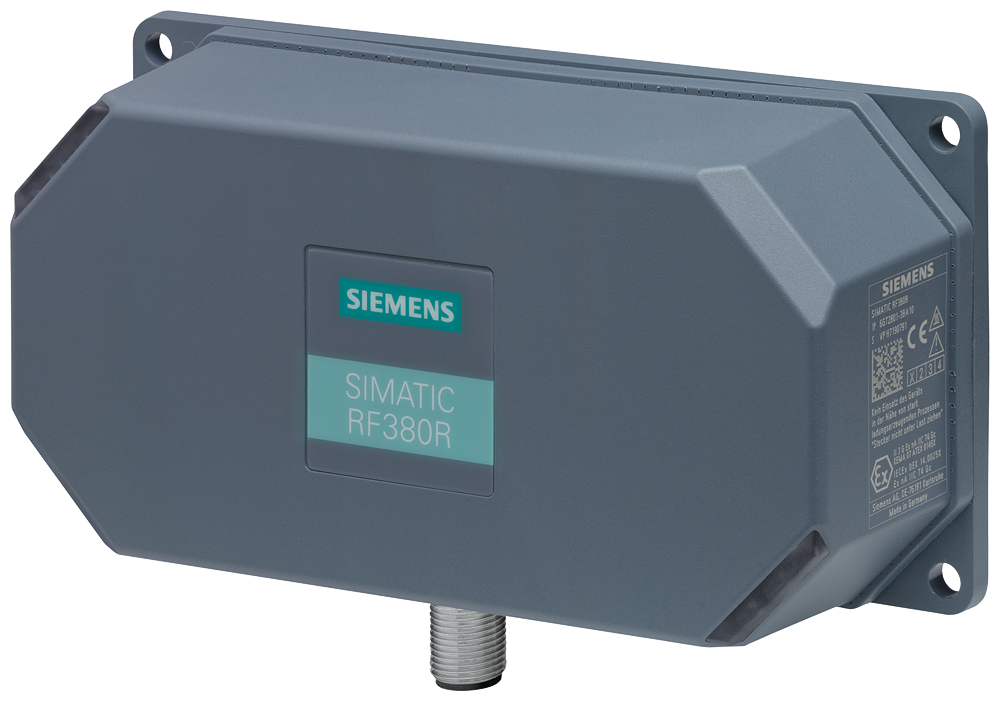

SIMATIC RF300 Reader RF380R (GEN2) RS422/232 interface (3964R) IP67, -25 to +70 °C, 160x 80x 41 mm with integrated antenna. SIMATIC RFRF380R readerHF reader for contact-free identification in closed production cycles in industrial production where very short cycle times are required. Thanks to the high degree of protection and the use of high-quality materials, the reader can be used even under the toughest industrial conditions without any problems. Its compact construction makes it ideal for implementation in assembly lines in which long ranges are required, or in dynamic applications in which the transponder is not stopped during the read/write process. Application areas: Identification tasks for production and material handling control, track-guided conveyor technology in mechanical engineering, assembly and auxiliary assembly lines in the automotive and electrical appliance industry, paint lines in the automotive industry, suspended monorails, auxiliary assembly lines (e.g.: door installation, cockpit installation), baggage handling systems for airports.Special command control is not required; the autonomously read transponder data is supplied directly to the connected host system. Integrated setup help facilitates reader/transponder positioning during installation/commissioning and the determination of the ideal antenna position without additional tools. It also increases process reliability. Robustness with respect to radio frequency interference; data communication that is resistant to interference with a high degree of data security. High-quality workmanship, welded housing, M12 single-connector system, without requiring additional ground connections on the reader. RGB LED control lamps for easy visual diagnostics. Multi-transponder mode; automatic detection of different transponder types. Maintenance-free data carriers with up to 64 KB of user memory with additional one-time programmable (OTP) data area up to 20 bytes. The use of low-cost ISO 15693 transponders is also possible. Extremely high-speed data transmission between read/write devices and mobile data storage units (max. 8000 bytes). Extensive status and diagnosticsfunctions.
