Description

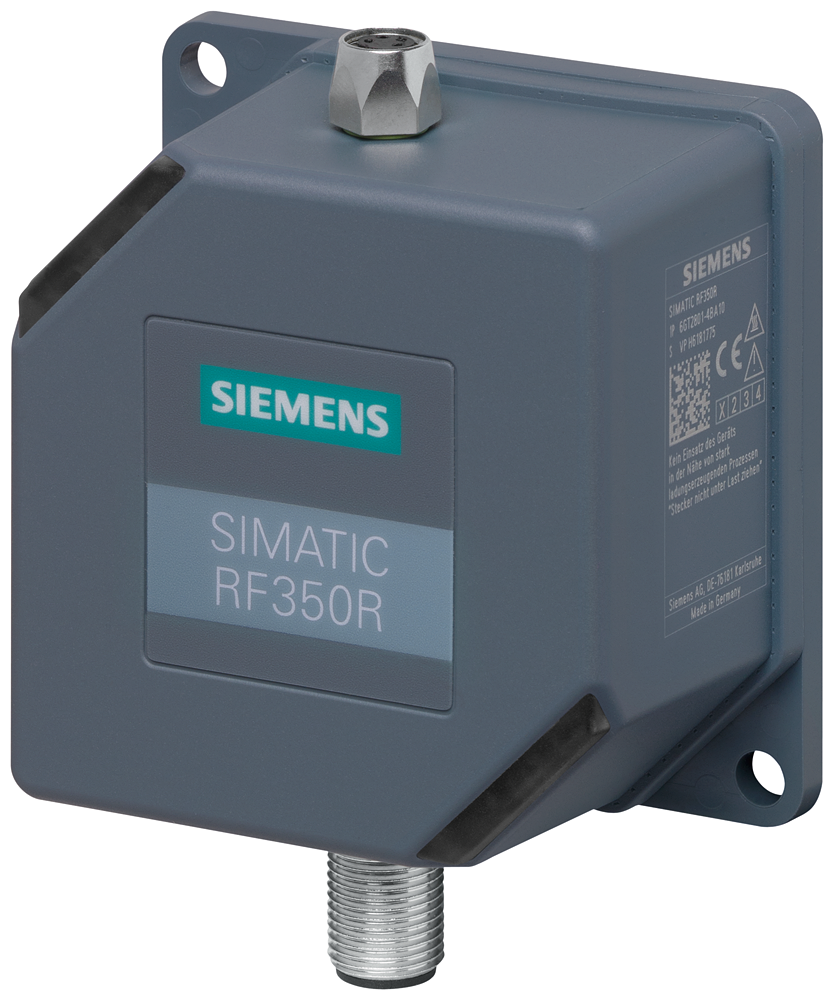

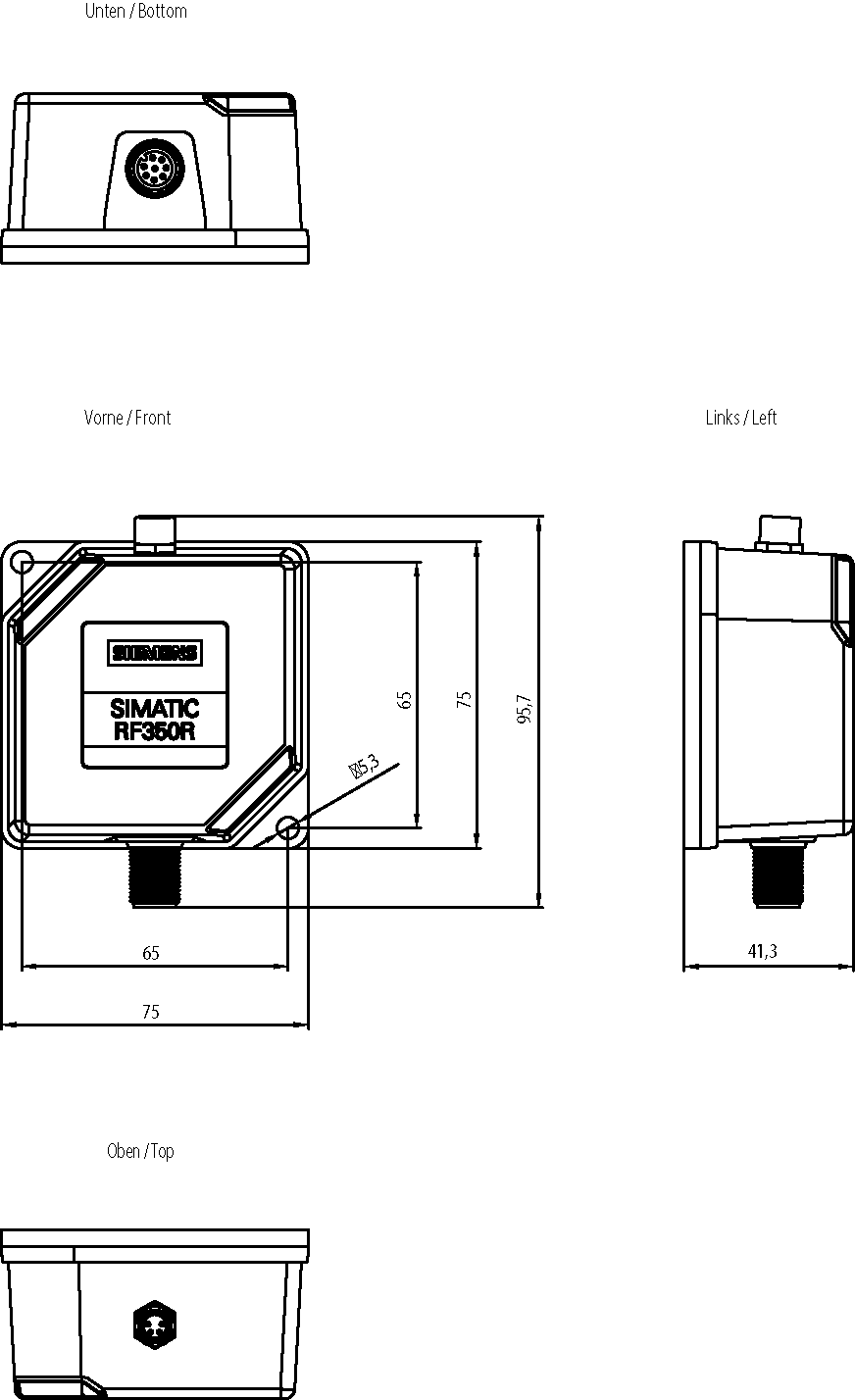

SIMATIC RF300; Reader RF350R (GEN2); RS422 interface (3964R); without antenna IP65, -25 to +70 °C, 75x 75x 41 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30. SIMATIC RFRF350R readerHF reader for contact-free identification in closed production cycles in industrial production where very short cycle times are required. Thanks to the high degree of protection and the use of high-quality materials, the reader can be used even under the toughest industrial conditions without any problems. Due to the different pluggable antenna designs (flat antennas, circular antennas), there are many possible applications in the area of industrial production, especially in assemblylines.Robustness with respect to radio frequency interference; data communication that is resistant to interference with a high degree of data security. High-quality workmanship, welded housing, M12 single-connector system, without additional ground connections on the reader. RGB LED control lamps for easy visual diagnostics. Maintenance-free data carriers with up to 64 KB user memory. Extremely high-speed data transmission between reader and transponder.
